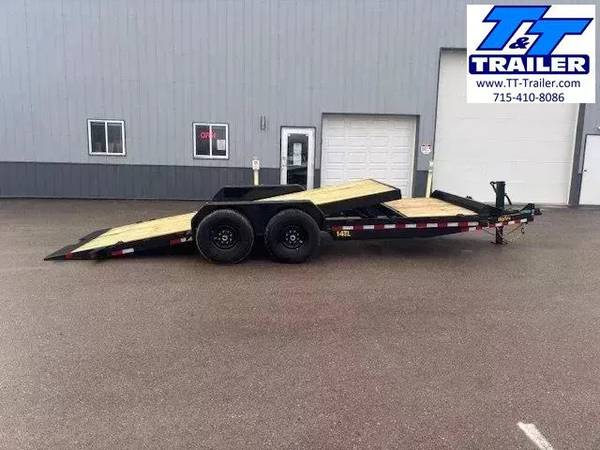

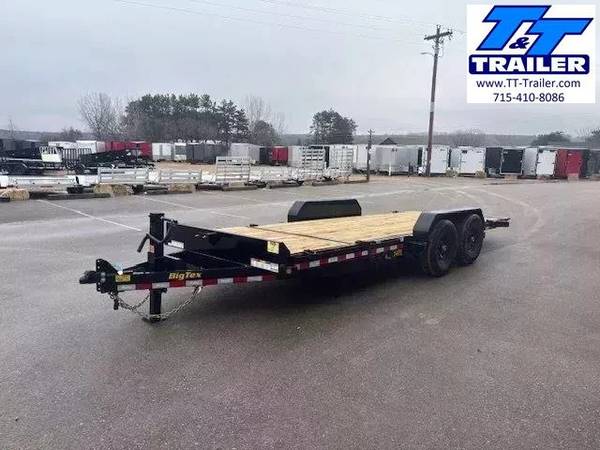

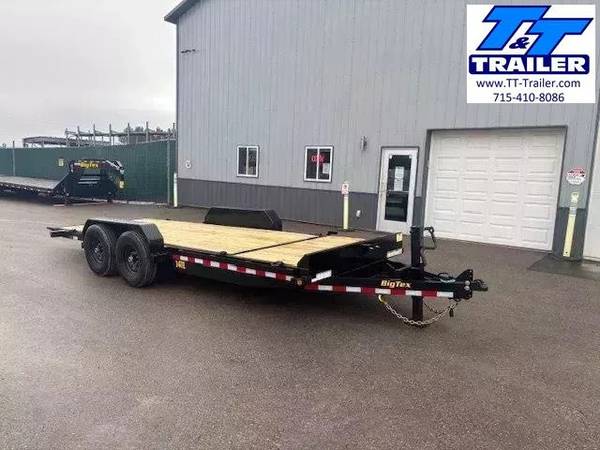

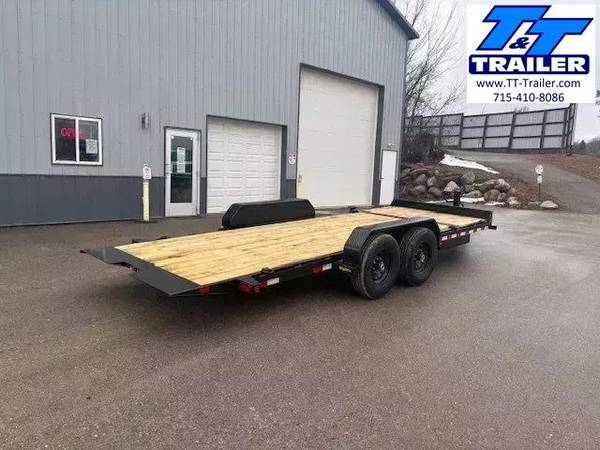

2025 Big Tex 14TL 83" x 20' Heavy Duty Tilt Equipment Trailer - $8,395 (somerset, wi)

2025 Big Tex 14TL 83" x 20' Heavy Duty Tilt Equipment Trailer

83" W x 20' L (16'+4'), GVWR: 14,000#, Trailer Weight: 3,460#

With a little bit of everything to keep you rolling on your equipment hauling tasks, the 14TL Heavy Duty Tilt Bed Equipment Trailer features a rear tilt deck as well as a stationary front deck. You can stay in control of your equipment with a hydraulic dampening system with a control valve for smooth loading and unloading. And with a fabricated front stop rail and expanded cargo space, you can use every inch of your bed for maximum hauling efficiency. Get ready for a new level of productivity. Big Tex Trailers have a 1-year limited warranty, a 3-year limited structural warranty along with a 5-year axle warranty.

14TL-20BK

DETAILS:

AXLES: 2 - 7,000# Premium, 4" Drop-Axles with Quick-Lubricating Hubs

BRAKES: Forward Self-Adjusting Electric Brakes on Both Axles

SUSPENSION: Multi-Leaf Slipper Spring w/ Equalizer

TONGUE: 6" Channel Fold Back/Wrap Tongue

COUPLER: Adjustable 2-5/16" Demco EZ Latch

SAFETY CHAINS: 3/8" Grade 70 w/ Safety Latch Hook (2 ea)

JACK: 12,000# Drop-Leg Jack (Side Wind)

FRAME: 6" Channel

CROSS-MEMBERS: 3" Channel on 16" Centers

FRONT STOP RAILS: 3/16" Fabricated Front Stop Rail (Bumper Pull Only)

FLOOR: 2" Treated Pine or Douglas Fir*

FENDERS: 9" x 72" 14 Ga. Diamond Plate Double Square Broke w/Back (Removable)

STAKE POCKETS: Stake Pockets Along Both Sides (Quantity Varies by Length)

TRAILER PLUG: 7-Way RV

LIGHTS: Recessed, Grommet-Mounted L.E.D. Lighting

WIRING: Sealed, Modular Cold-Weather Wiring Harness

TIRES: ST235/80 R-16 Load Range E Radial Tires

BOLT PATTERN: 8-Bolt

WHEELS: Black Mod

SPARE MOUNT: Front Spare Tire Mount

SPARE TIRE: Not Included

PAINT TYPE: Professional Finish w/ Primer Standard

PAINT COLOR: Black

TILT DECK DIMENSIONS: 16'x75" Wide (83" Between Fenders) with 1/4" Diamond plate Knife Edge

TILT DECK OPERATION: Hydraulic Dampening with Valve Control and Single Side, EZ Pedal Locking Mechanism

STATIONARY DECK AREA: 4' x 83" (20' Models), 6'x 83" (22' Models)

RUBRAIL: Rub Rail Along Both Sides

TIE-DOWNS: (6) 5/8" D-Rings

BREAK-AWAY KIT: Complete Breakaway System w/ ZipTrademark Breakaway Cable and Charger

TILT DECK ANGLE: 12°
