Sealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size - $229 (bloomington)

‹ image 1 of 16 ›
Sealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 1
Sealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 1 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 2 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 3 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 4 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 5 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 6 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 7 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 8 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 9 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 10 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 11 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 12 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 13 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 14 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 15 thumbnailSealed Power Cast Pistons 1967-1969 ELECTRA RIVIERA WILDCAT 030 Size 16 thumbnail
make / manufacturer: Peterbilt
model name / number: 9528545786

more ads by this seller

QR Code Link to This Post

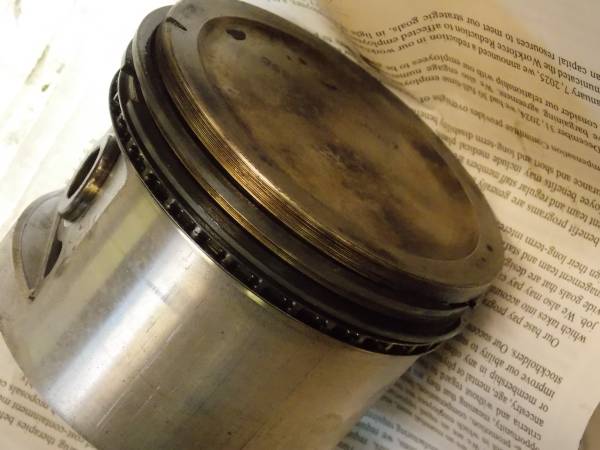

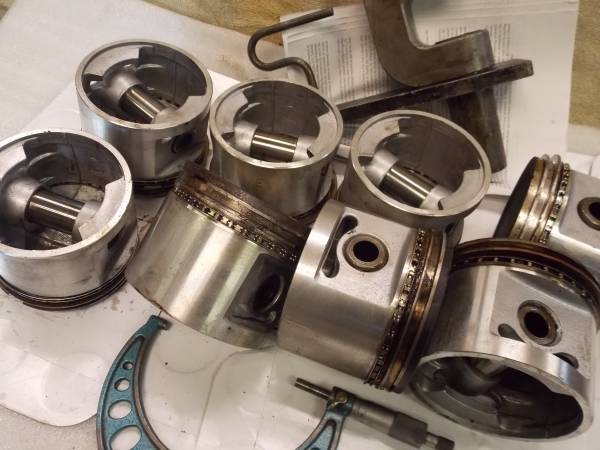

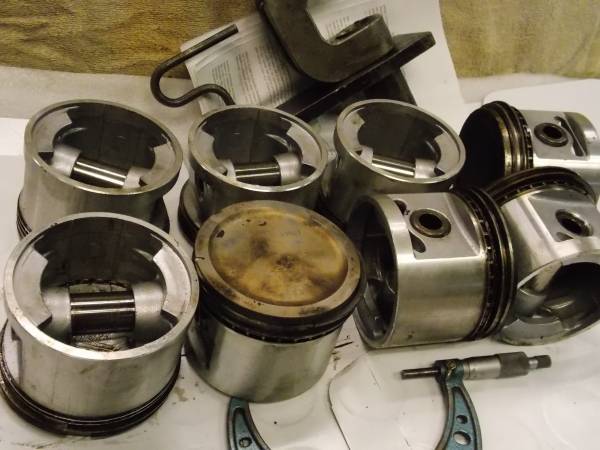

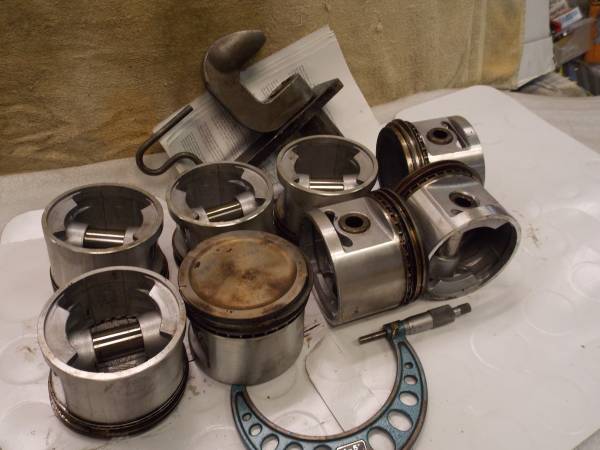

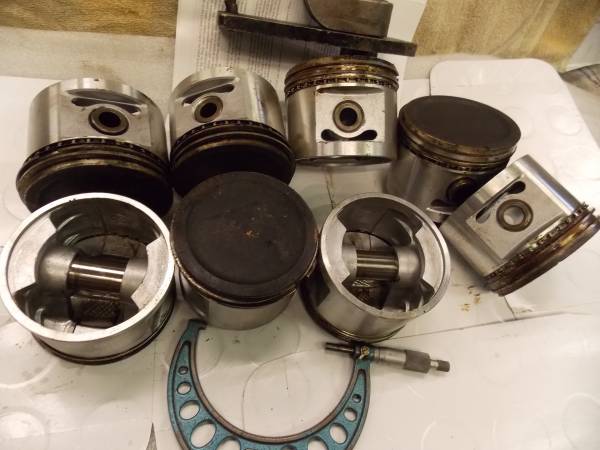

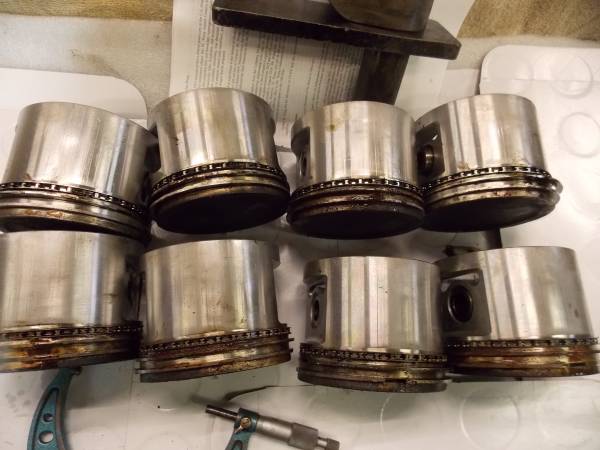

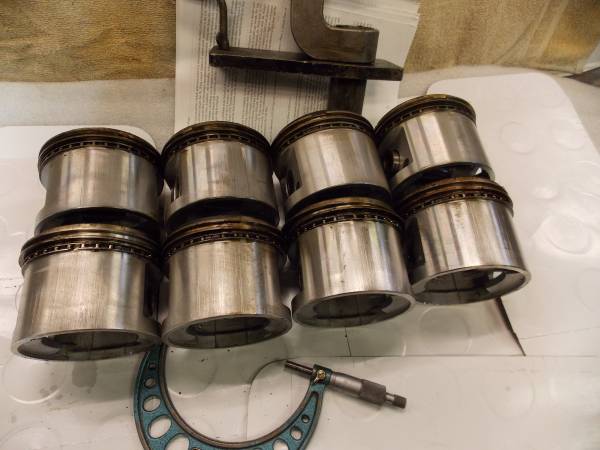

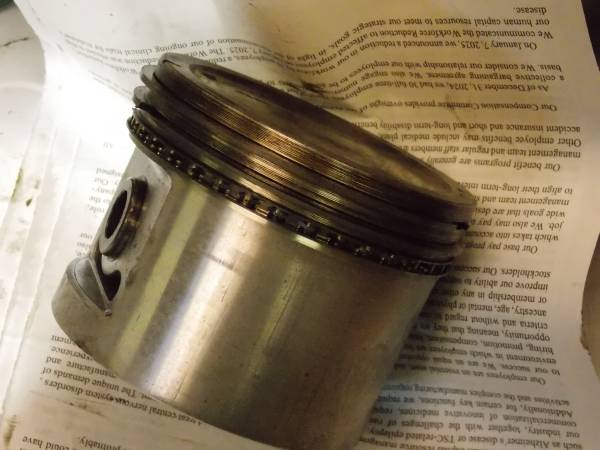

Sealed Power Cast Pistons for 1967-1969 ELECTRA, RIVIERA, WILDCAT Part Number 368P 30 Bore size 4.218" Final. These came from a perfect running motor. The customer wanted to go higher compression for racing. Both sides of skirts are being shown and there is some scratches, but nothing to cause any issue. They all measure properly for the .030 oversize bore. They were pressed off using the OTC Fixture, so there was never any pressure on the piston(The only correct way to press-off pistons to be used again). We only wire wheeled the top of 1 piston. You can easily do that to the rest and clean in solvent for assembly in 20 minutes. Call show contact info

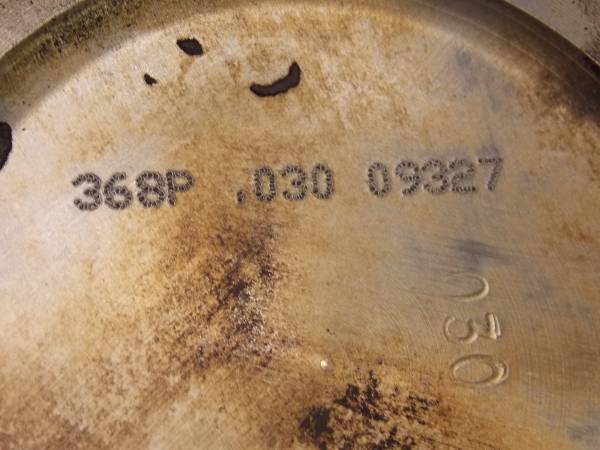

This item is for eight (8) .030 over bore Sealed Power cast aluminum pistons for 1967-1969 Buick 430ci V-8 engines. P/N (8) 368P-030 . These pistons are manufactured to meet or exceed O.E.M. specifications.
For budget or stock rebuilds, you cannot beat the value of Sealed Power cast pistons. They are made from high quality aluminum alloys that feature a carefully controlled casting, heat-treating, and CNC-machined process. Because they are designed and manufactured to exceed O.E.M. specifications, these pistons provide improved reliability, performance, and a long service life.
PISTON SPECIFICATIONS

Bore: 4.2175 in. (at .030 bore)
Stroke: Stock
Connecting Rod Length: Stock; rods NOT included
Piston Top Style: Recessed head .090 deep x 3.500 diameter; 9.9:1 CR
Compression Height: 1.947 in.
Piston Material: Cast aluminum

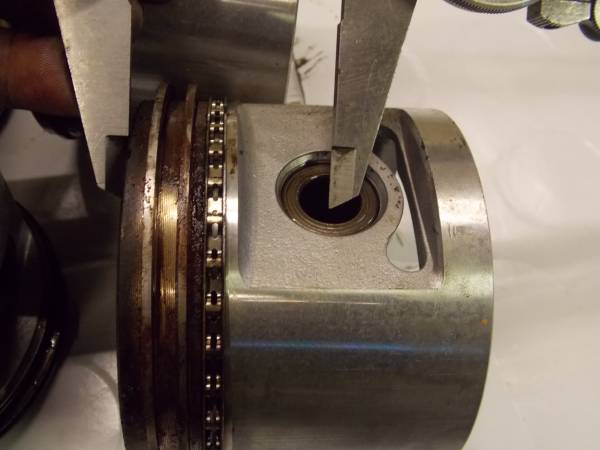

Wrist Pin Diameter: .9997 in.; pins included
Wrist Pin Style: Press-fit only
Ring Land Sizes: 5/64-5/64-3/16 (oil ring); rings included
Minimum Clearance: .0015-in. at bottom of skirt
