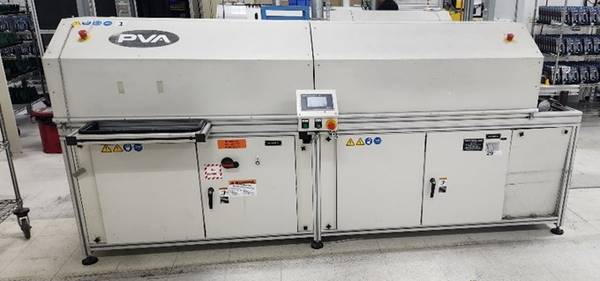

Infrared Curing Oven, Inline, Good Working Condition - $10,770 (Coon Rapids)
condition:
good
make / manufacturer:
Precision Valve & Automation
model name / number:
IR2000
size / dimensions:
120x40x56
QR Code Link to This Post
Two available.
The ovens were being used to cure Silicone / RTV / Gasketing / Circuit Board coating materials that protect from harsh environments.
440VAC 3ph Power and Exhaust required, PLC Controlled, Touchscreen Operator Interface, Pin Chain Conveyor, Left to Right Process Flow, 18" Max Conveyor Width, Manual Conveyor Width Adjust, Four Bottom and Four Top IR Heaters (24"x24" heater panels) 8 Feet Curing Tunnel, 10 Feet overall length. Decommissioned in 12/2024.
Freight shipping available, Buyer pays any and all shipping cost.
FOB: Origin
Loading dock shipment by appointment.
Free Local pick up by appointment.
* Maximum Panel Temperature: 260º Celsius (500º Fahrenheit)
* Curing Length: 8 Ft
* Independent Heating Zones: Programmable in two foot sections
* Conveyor Speed: 0.15 m/min to 5.8 m/min (0.5 ft/min to 19 ft/min)
* Board / Pallet Width: 51 mm to 457 mm (2 in to 18 in)
* Component Clearance: 100 mm (4 in) top and bottom
* SMEMA communication protocol
* Thermocouple process control with independent over temperature protection
* Conveyor Height: 940 mm to 965 mm from floor (37 in to 38 in, SMEMA standard)
* Exhaust: 300 cfm exhaust fan with low level alarm included
