Falk Ultramite 09UBBC3AJ8.ON1 Electric Gear Drive. - $999 (MASON CITY, IOWA)
38 Linden Drive near Beaumont Drive
QR Code Link to This Post
Ultramite is motor-independent, allowing the use of standard NEMA
C-face or IEC motors. There is no need to drain oil, or remove the gear
from the production line, when replacing the motor. Multiple mounting
positions are available and include: base, wall, top, vertical, shaft, and
flange.
Lowered total cost of inventory, less downtime, ease of maintenance, and
utilization of the motor supplier of choice. Integral requires use of gear
manufacturer specific motors with complex pinion output shafts.
The Falk Ultramite UC Helical size 09 gear drive is a type of concentric inline gear drive that is built for longer service life. It has an integral high-speed pinion that is fully supported by bearings within the gearbox, not by motor bearings, while dual lip seals prevent contamination. Ultramite is motor-independent allowing the use of standard NEMA C-face or IEC motors. The innovative motor bushing eliminates fretting between the motor and the gear drive. This design offers easy installation and allows for quick, trouble-free change out, even after years of hard, continuous use. Falk Ultramite Gearmotors have continuous-duty ratings from the American Gear Manufacturers Association (AGMA).
Falk Ultramite 09UB Gearmotors
The Falk Ultramite UB Right Angle Helical Bevel gearmotor size 09
gear drive has ratio range of 8.0 - 7,100 and a max torque of 33,400
inch pounds. The UB Ultramite Right Angle Helical Bevel product line
offers several low speed connection options including straight hollow
shaft with key and TA tapered bushing with guaranteed removal. Units
include a motor adapter for ease of installation and removal of a
standard NEMA C-Face motors.
.
Please check out the Rexnord website for accurate Gear Drive selection.

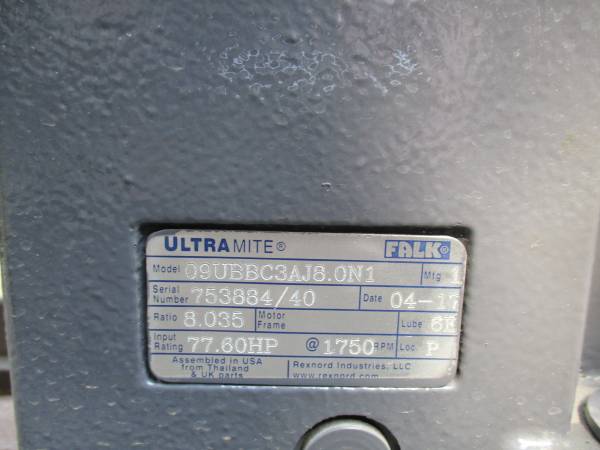

Ratio: 8.035
Input RPM:
Output RPM:
Service Rating HP: 77.60 HP @ 1750 R.P.M.
Service Factor:
Input Shaft:
Output Shaft:
Shipping Weight: 388-423#.
Normally ships within 24 Hours!
Will Consider Trades for Working Vending Machines.
Thank You For Your Business
and Have a Great Day!
Stock #09UBBC3AJ8.ON1
