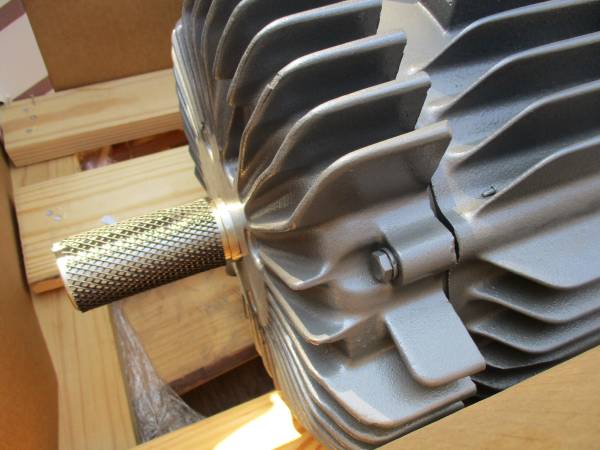

Baldor EM7060T-C 25/30HP 1470/1780RPM 3PH 50/60HZ 286T Motor. - $1,999 (MASON CITY, IOWA)
38 Linden Drive near Beaumont Drive
QR Code Link to This Post
10E106Y758G1.
Normally ships within 24 Hours!
Performance at 460 V, 60 Hz, 30 hp
Typical performance; not guaranteed values.
General Characteristics
Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.226 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 57° C
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 270 LB-FT
Pull-Up Torque 128 LB-FT
Locked-Rotor Torque 145 LB-FT
Starting Current 235 A
Load Characteristics
Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 4.0 44.0 66.0 75.0 83.0 83.0 83.0 0.0
Efficiency 0.0 90.6 93.7 94.3 94.0 93.2 93.0 0.0
Speed (RPM) 1,799 1,794 1,787 1,781 1,774 1,766 1,757 0
Line Amps 15.90 17.90 23.00 30.10 36.20 45.30 54.50 0.00
Performance Curves
Performance at 380 V, 50 Hz, 25 hp
Typical performance; not guaranteed values.
General Characteristics
Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.226 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 57° C
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 267 LB-FT
Pull-Up Torque 131 LB-FT
Locked-Rotor Torque 149 LB-FT
Starting Current 224 A
Load Characteristics
Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 4.0 45.0 67.0 76.0 83.0 83.0 83.0 0.0
Efficiency 0.0 90.0 93.2 93.7 93.4 91.9 92.0 0.0
Speed (RPM) 1,499 1,494 1,487 1,481 1,474 1,466 1,457 0
Line Amps 15.50 17.60 22.90 30.20 36.50 45.90 55.50 0.00

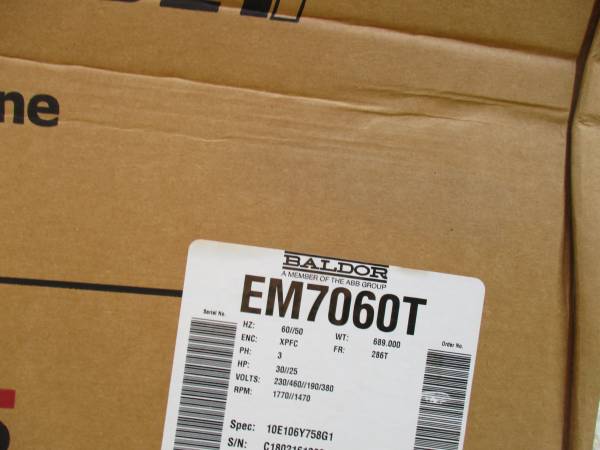

Catalog Number EM7060T
Enclosure XPFC
Frame 286T
Frame Material Iron
Frequency 50.00 Hz
60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 25.000 HP @ 50 HZ
30.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 380.0 V @ 50 HZ
230.0 V @ 60 HZ
190.0 V @ 50 HZ
460.0 V @ 60 HZ
XP Class and Group CLI GP D; CLII GP F,G
XP Division Division I
Agency Approvals UL
CSA
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 76.000 A @ 208.0 V
74.000 A @ 190.0 V
72.000 A @ 230.0 V
37.000 A @ 380.0 V
36.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 36.0 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
Thank You For Your Business
and Have a Great Day!
Stock #EM7060T
