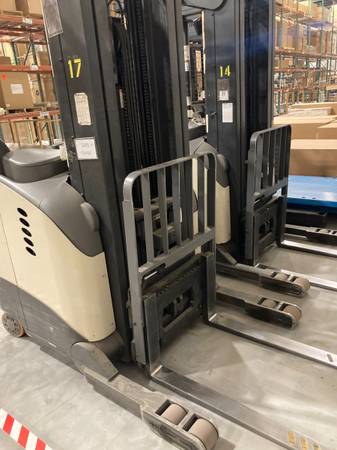

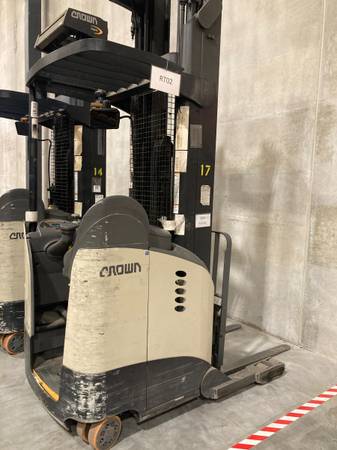

2010 Crown Reach Truck - $4,000 (Otsego)
Queens Ave NE
condition:
good
engine hours (total):
14374
make / manufacturer:
Crown Equipment
model name / number:
RR5795S-45
QR Code Link to This Post
[30] High Visibility Triple Telescopic Mast
[40] Lift Height - 300"/7620mm
[50] Collapsed Height - 131"/3325mm
[60] Extended Height - 348"/8840mm
[70] with 48" Load Backrest
[80] Inside/Outside Straddle -
[90] 41"/1040mm / 52"/1320mm
[100] 36v 36 Volt System Electrical System
[110] "C" Battery Compartment Battery Compartment
[120] Code Code "10" 16.25 x 38.38 x 31
[130] Min/Max Battery Weight - 2000/2490 Lbs
[140] Tilt - 3 Deg. Forward/4 Deg. Back
[150] OPTIONAL FEATURES
[160] Battery Connector-SB350 Red
[170] AC Hydraulic System
[180] Forward Steering
[190] Electric Steering System
[200] Sideshifter - 4" / 100mm Each Way
[210] Fork Spread - 30"/760mm
[220] 5" x 4.1" / 125mm x 105mm Load Wheels
[230] -302 Compound
[240] Poly Drive Tire Drive Tire - Standard
[250] Standard Outriggers
[260] Forks - 42"/1065mm Standard Taper
[270] Display - Enhanced Display with CDM
[280] Positive/Negative Accessory Cable
[290] Glass Mast Guard
[300] Third Post
[310] (If Used in a Drive-In Rack Application, Check Clearance of the Third Post.)
[340] Overhead Guard Height - 95"/2415mm
[350] Single Drive Motor Comp. Fan
[360] Crown Beige/Gray Paint Colors
[370] Load Backrest - 36"/915mm High
[380] Manufacturing Standard - ANSI for U.S. &
[390] Decals - US English
[400] Right & Left Side Accy. Tubes
[410] 1 Accessory Clamp
[420] InfoLink Ready
[430] Includes Harness, Impact Sensor, and Required Hardware
[450] Video Format - dvd DVD
[460] Service Manual

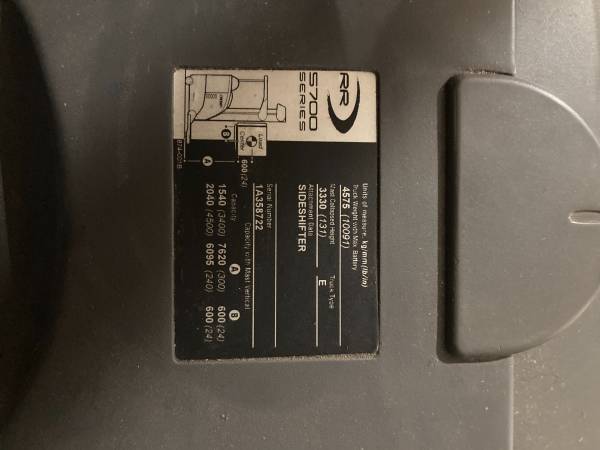

[470] Capacity Information @ 24" Load Center
[480] 4500 lbs/2045 kg Capacity to 240"/6095m
[490] 3400 lbs/1545 kg Capacity to 300"/7620m
Crown InfoLink Module not included
