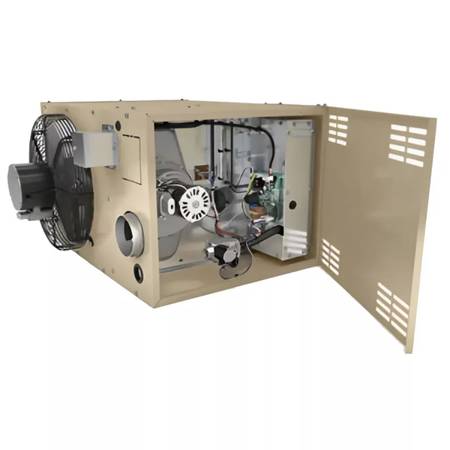

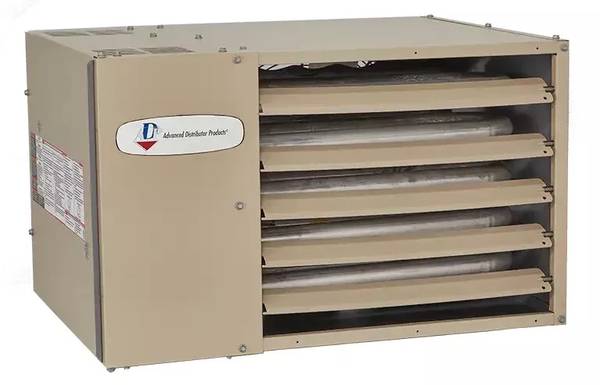

ADP UHRS-105P 105,000 BTU Propane (LP) Power Vented Garage Unit Heater - $1,040
QR Code Link to This Post
Features:
Residential – low profile units
Great for garages & shops
Sidewall venting eliminates roof penetrations
Wiring junction box is located inside of unit
1” clearance from ceiling for easy installation
Up to 85% thermal efficiency
Self-diagnostic board with LED display improves troubleshooting
Power exhaust system allows horizontal venting to 25 ft
Tubular heat exchangers made of aluminized steel
Aluminized steel in shot burners provide efficient trouble free operation
Direct drive propeller fans are dynamically balanced for quiet and smooth operation
Specs:
Air Volume: 1500 cfm
Dimensions: 23" H x 29" W x 28.875" D
Efficiency: 85 %
Fan Diameter: 16 in
Fan Motor Output: 1/10 hp
Fan Motor Speed: 1075 rpm
Flue Size: 4 in Dia
Frequency: 60 Hz
Gas Piping Size: 1/2 in NPT
Heating Capacity Input: 105,000 Btu/hr
Natural Gas Output: 89,250 Btu/hr
Number of Blades: 4
Number of Fans: 1
Phase: Single
Shipping Weight: 125 lb
Throw: 43 ft
Voltage: 115 V
